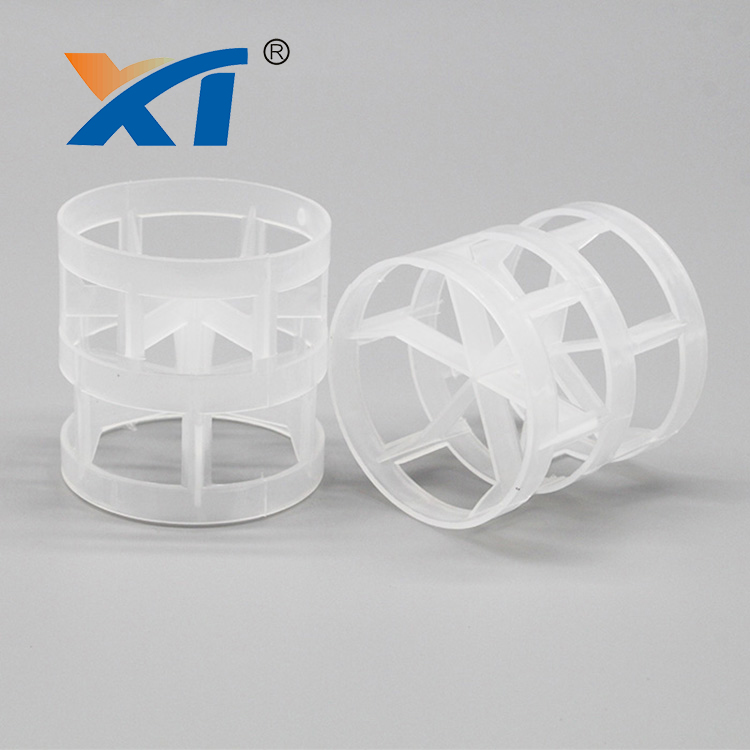

Plastic Pall Ring

Plastic Pall rings are widely used in Absorption, scrubbing, and stripping services, Versatile alternative to metal Pall rings, all kind of separation, constant decompress tower plants, compounding ammonia plant, decarbonization plant, separation of ethylbenzene, seperation of isooctane/ methylbenzene. Plastic Pall ring most suited in low pressure drop, high capacity applications, lpw mass-transfer unit height ,high flooding point ,uniform gas-liquid contact ,small specific gravity,high mass transfer efficiency and so on .

Model		Pall Ring
Material		PP
Spec of PP Pall Ring	D*H*T	Number per m³	Bulk density	Surface area	Free volume	F factor
	(mm)	PCS	(kg/m³)	(m²/m³)	(%)	(m-1)
16mm	16*16*1.1	180,000	90.0	188	91	249
25mm	25*25*1.2	53,500	48.2	175	90	239
38mm	38*38*1.4	15,800	41.1	115	89	220
50mm	50*50*1.5	6,500	41.6	112	90	154
76mm	76*76*2.6	1,930	34.7	73	92	94
Typical Application	Absorption; Scrubbing; Stripping services;
Warranty:	By National Standard HG/T 21556.3-1995
	Offer lifetime consultation on problems occurred





Size

25mm，38mm，50mm，76mm

Material

Common material is PP，if you need other material，ex. PE or PVC，please contact customer service to change price

Package

Besides plastic bag，super sack for option



7-8Plastic bag/CBM

1CBM/Sack 1Sack/Pallet



Transportation

International express, by sea or by air

Payment

Wechat pay, Alipay or T/T Transfer

If you choose T/T Transfer, please contact customer service
