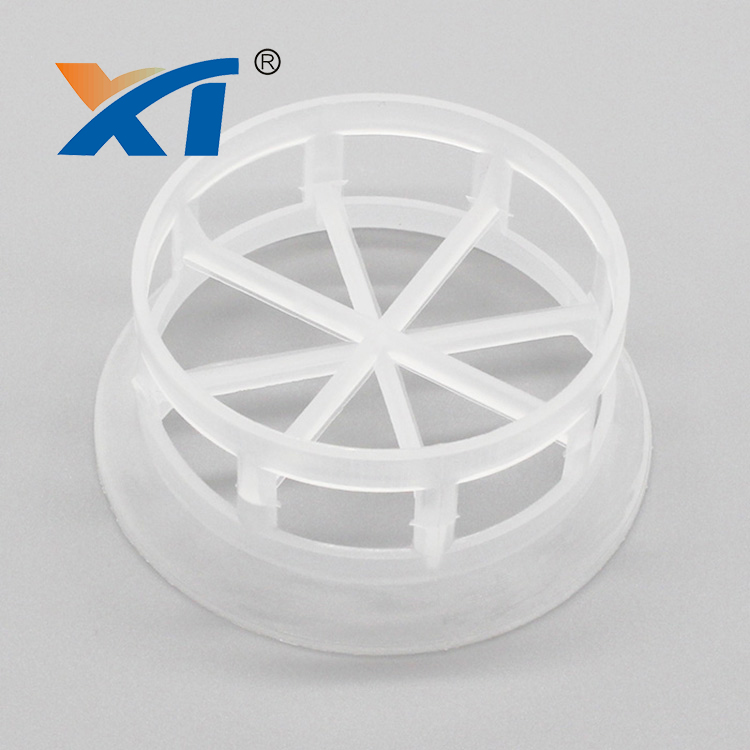

Plastic Cascade Ring

Cascade Ring has been used successfully as an inexpensive and efficient product to increase tower capacity and efficiency. There are numerous process advantages that can be realized by using plastic random column packing in many applications. It is made of anti-chemical corrosion materials,such as PE,PP,RPP,PVC,CPVC and PVDF The feature is that high void ratio,low pressure drop, sufficient gas liquid contact,small specific weight,and high mass transferring efficiency and so on. The working temperature is within 60-150, and widely used in refinery,chemical alkali-chloride,coal gas and environmental protection etc.

Model		Cascade Mini Ring
Material		PP,RPP,PE,PVC,CPVC,PVDF, etc.
Spec of PP CMR	D*H*T	Number per m³	Bulk density	Surface area	Free volume	F factor
	(mm)	PCS	(kg/m³)	(m²/m³)	(%)	(m-1)
16mm	16*8.9*1.1	299,000	119.6	370	85	602.6
25mm	25*12.5*1.4	81,500	65.2	228	90	312.8
38mm	38*19*1	27,200	43.5	132.5	91	175.8
50mm	50*25*1.5	10,740	40.8	114.2	92.7	143.1
76mm	76*37*3	3,420	42.8	90	92.9	112.3
Typical application:		Absorption, scrubbing, and stripping services





Size

16mm，25mm，38mm，50mm，76mm

Material

Common material is PP，if you need other material，ex. PE or PVC，please contact customer service to change price

Package

Besides plastic bag，super sack for option



7-8Plastic bag/CBM

1CBM/Sack 1Sack/Pallet



Transportation

International express, by sea or by air

Payment

Wechat pay, Alipay or T/T Transfer

If you choose T/T Transfer, please contact customer service
