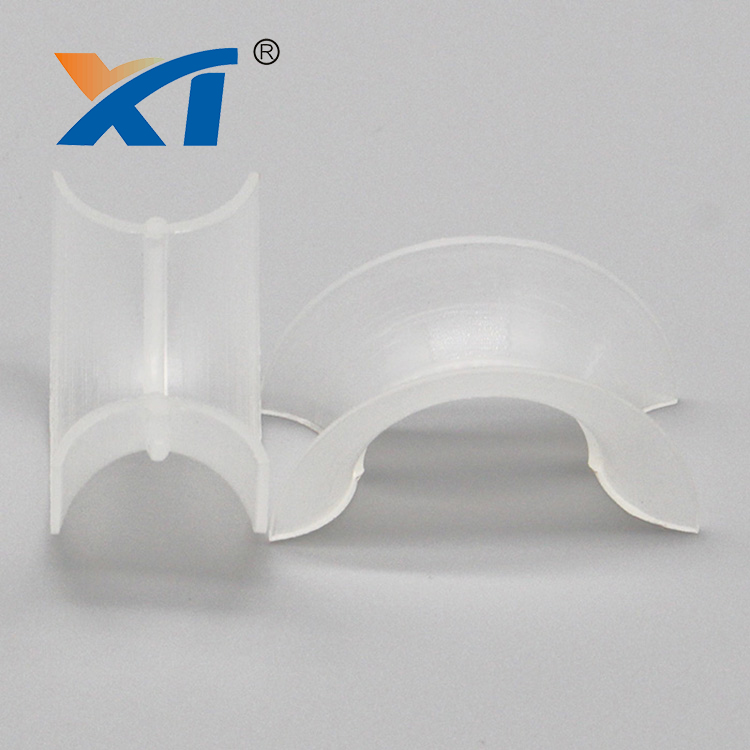

Plastic Intalox Saddles Ring

1) High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer 2) Widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrade.

Model		Intalox Saddles Ring
Material		PP,RPP,PE,PVC,CPVC,PVDF, etc.
D*H*T	Number per m³	Bulk density	Surface area	Free volume	Factor
(mm)	PCS	(kg/m³)	(m²/m³)	(%)	(m-1)
25*12.5*1.2	97,680	107.4	288	84.7	473
38*19*1.2	25,200	52.9	265	95	405
50*25*1.5	9,400	63.0	250	96	332
76*38*2.6	3,700	42.2	200	97	289





Size

25mm，38mm，50mm，76mm

Material

Common material is PP，if you need other material，ex. PE or PVC，please contact customer service to change price

Package

Besides plastic bag，super sack for option



7-8Plastic bag/CBM

1CBM/Sack 1Sack/Pallet



Transportation

International express, by sea or by air

Payment

Wechat pay, Alipay or T/T Transfer

If you choose T/T Transfer, please contact customer service
